UPSHIFT PROJECT BIKE: 2017 KTM 350 EXC-F

By Jay Clark

  • The KTM EXC line of bikes are simply amazing for Dual Sport usage and we thought we would tinker with our 350EXC to see just how good we could make it for the trails.
  • The Vortex ECU, FMF muffler and removing the back fire screen were our main mods to this already great bike. The bike has plenty of power for the track and the trail.
  • Factory Connection is known as the Honda suspension guys but they really know how to do magic to the WP Explore and PDS shock.
  • Baja Designs was able to help power up much more with the plug n play headlight that fits nicely in the stock headlight mask.


Highlights of the build

  • FMF Slip on with Spark arrestor is a great way to increase power for a cheap price.
  • Vortex ECU — was used to allow for better tuning when on the trail or at elevation.
  • Removed back fire screen— OEM two stroke cage was installed for quicker snap of the bottom.
  • Left all Emissions intact
  • Gearing update. We switched the front to a 13T from the stock 14T to allow for much better trail power.
  • Baja Designs head light in stock mask with high output and high and low beam working.
  • XCW rear tail piece with custom Tusk blinkers set up for much sleeker look for license plate set up.
  • KTM Orange frame guards 79003094000EB


Factory Connection notes on suspension

We have worked really hard with this bike in the field and on the dyno. The OEM set up is unbalanced; the back rides high and the forks low giving a push to the front and harsh feel to the forks.On the shock we have a plusher setting than OEM that improves traction and small bump ride. The forks have improved damping curve that holds them up in the stroke and is still very plush for the nasty trails. The balance of the bike is improved to give the bike the right front to back feel and correct load on the forks and shock under braking and acceleration.

FMF Racing - Slip-on 4.1 Exhaust
www.fmfracing.com




Supersprox - Rear Stealth Sprocket 52T, Front Sprocket 13T stock is 14T, O-ring Chain
www.supersproxusa.com

TM Designs - Rear Chain Guide
www.tmdesignworks.com




IMS Oversized Fuel tank
www.imsproducts.com




Baja Designs - Plug n Play High Output Headlight
www.bajadesigns.com




Cycra Racing - Ultra Pro-Bend Full Wrap Around Hand Guards, Full Plastic Kit, Full Armor Skid Plate
www.cycraracing.com




Factory Connection - Suspension Set-Up
www.factoryconnection.com


Hinson Clutch Components - Fibers, Steels, Springs and Outer Cover Kit, Full Inner Hub Pressure Plate Kit
www.hinsonracing.com

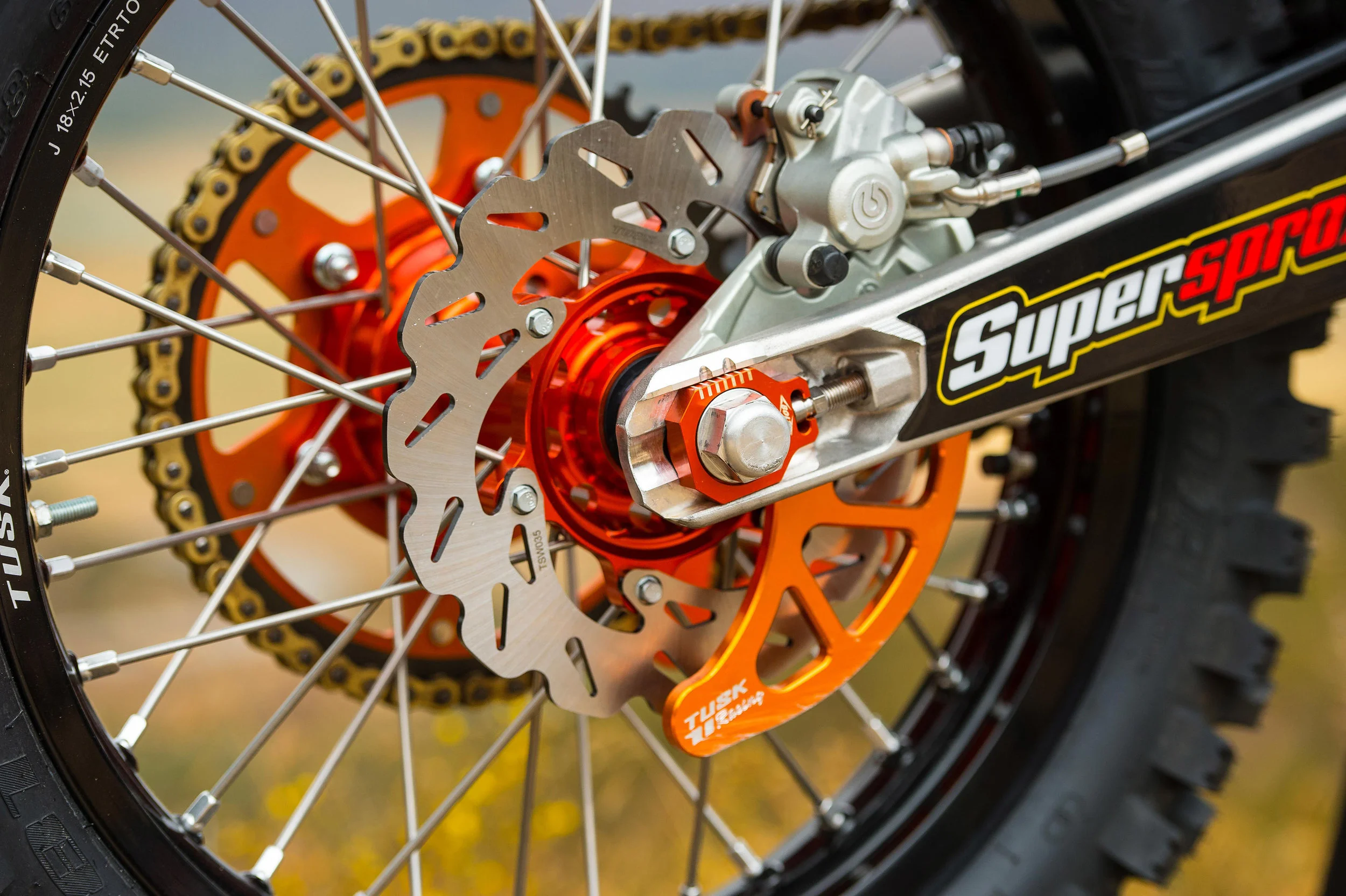

Tusk Off road - Stock front and Rear Rotors, Complete Wheel Set, Brake Bolt Kit, Sprocket Bolts Kit,
Lightweight Battery Lithium Battery, Rear Brake Rotor Guard (Shark Fin)

www.tuskoffroad.com




Scar - Titanium Footpegs
www.scar-racing.com




Dunlop Tires - Front - AT81 90/90-21, Rear - AT81 120/90-18
www.dunlopmotorcycletires.com




DeCal Works - Semi-Custom Graphics Kit, Pre-Printed Number Plates Backgrounds
www.decalmx.com

Moto Seat - Custom Cool Seat Cover
www.motoseat.com




Twisted Development Vortex X-10 ECU
www.td-racing.com

Uni Filter - Two-Stage air filter
www.unifilter.com

CV4 - High pressure radiator cap, Formed Silicone Coolant Hoses- Eliminates The Thermostat So You Can Run The Larger Fuel Tank
www.cv4.net

Renthal - 604 Fat Bars, Tackygrips
www.renthal.com

Works Connection - Bike Stand, Brake Caps
www.worksconnection.com

Bullet Proof designs - Rear Swing Arm Guard, Radiator Braces
www.bulletproofdesigns.com

Motion Pro - Grip Glue, Titan Throttle Tube
www.motionpro.com

Bolt Motorcycle Hardware – Hardware, Chain Adjuster Blocks
www.boltmotorcyclehardware.com
